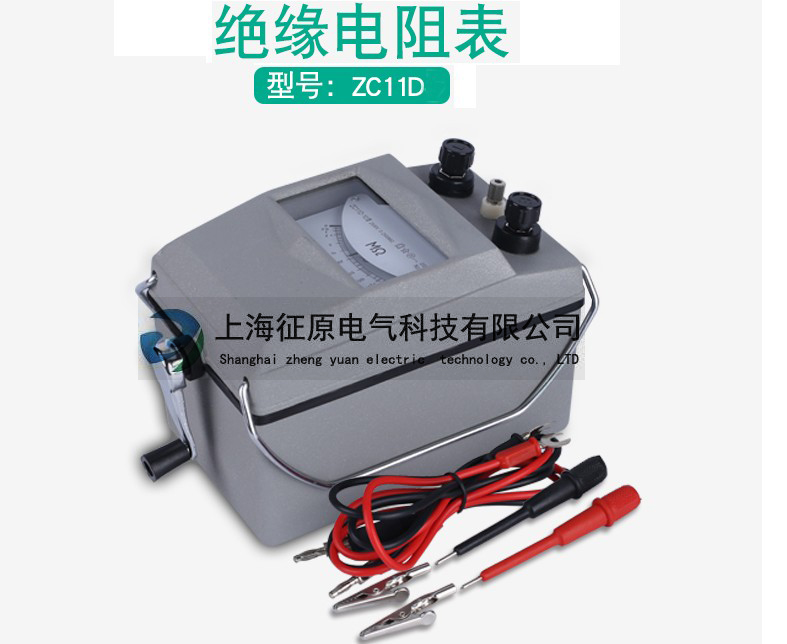

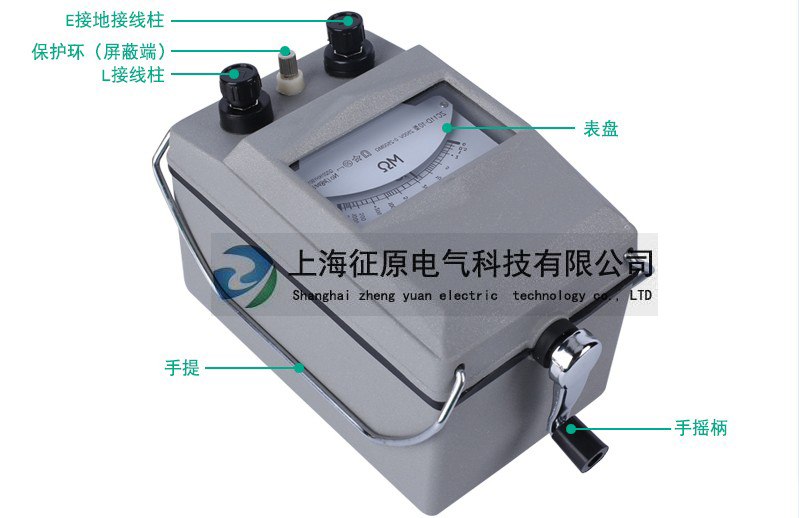

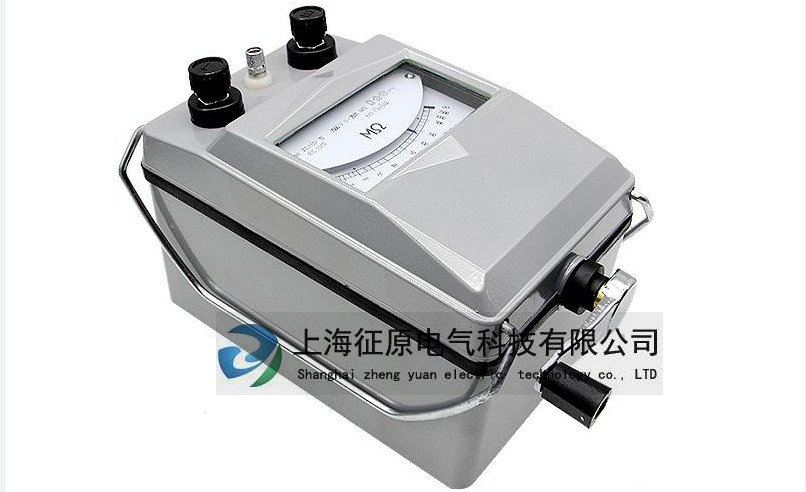

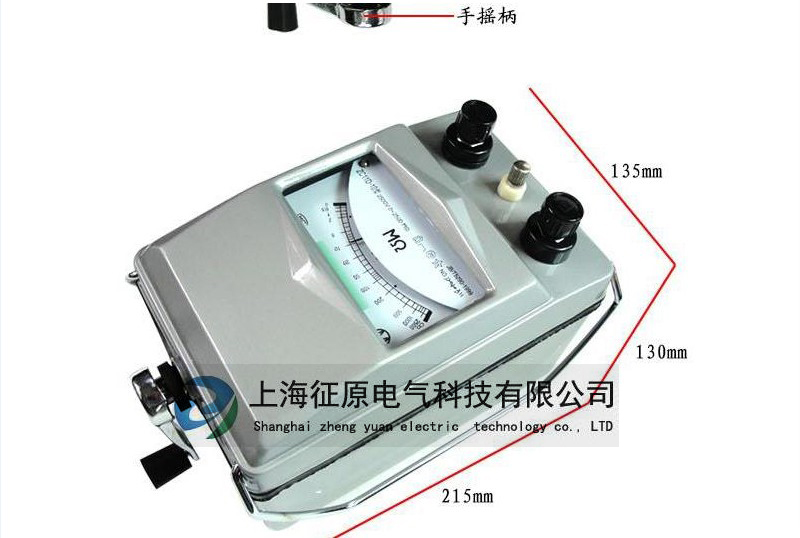

ZC11D型系列絕緣電阻表適用于測量各種電機、電纜、變壓器、電訊元器件、家用電器和其他電氣設備及絕緣材料的絕緣電阻。
ZC11D型系列絕緣電阻表技術指標
ZC11-1 100V 500MΩ
ZC11-2 250V
1000MΩ
ZC11-3 500V 2000MΩ
ZC11-4 1000V 5000MΩ
ZC11-5 2500V
10000MΩ
ZC11-6 100V 20 MΩ
ZC11-7 250V 50 MΩ
ZC11-8 500V 100
MΩ
ZC11-9 50V 200 MΩ
ZC11-10 2500V 2500 MΩ
ZC11D-1 100V 500 MΩ
ZC11D-2 250V 1000
MΩ
ZC11D-3 500V 2000 MΩ
ZC11D-4 1000V 5000 MΩ
ZC11D-5 2500V 10000
MΩ
ZC11D-6 100V 20 MΩ
ZC11D-7 250V 50 MΩ
ZC11D-8 500V 100 MΩ
ZC11D-9
50V 200 MΩ
ZC11D-10 2500V 2500 MΩ
型號及量程：
|
兆歐表 搖表 絕緣電阻表 |
規格型號 |
量程 |
|
ZC25-1 |
100V~100MΩ |
|
|
ZC25-2 |
250V~250MΩ |
|
|
ZC25-3 |
500V~500MΩ |
|
|
ZC25-4 |
1000V~1000MΩ |
|
|
ZC25B-3 |
500V~500MΩ |
|
|
ZC25B-4 |
1000V~1000MΩ |
|
|
ZC11D-10 |
2500V~2500MΩ |
|
|
ZC11D-5 |
2500V~10000MΩ |
|
|
ZC-7-1 |
500V~1000MΩ |
|
|
ZC-7-2 |
1000V~2000MΩ |
|
|
ZC-7-3 |
2500V~5000MΩ |
|
|
ZC-7-4 |
5000V~10000MΩ |
|
|
ZC11-10 |
2500V2500 MΩ |
|
|
ZC11-1 |
100V500 MΩ |
|
|
ZC11-2 |
250V1000 MΩ |
|
|
ZC11-3 |
500V2000 MΩ |
|
|
ZC11-4 |
1000V5000 MΩ |
|
|
ZC11-5 |
2500V10000 MΩ |
|
|
ZC11-6 |
100V20 MΩ |
|
|
ZC11-7 |
250V50 MΩ |
|
|
ZC11-8 |
500V100 MΩ |
|
|
ZC11-9 |
50V200 MΩ |
|
|
接地電阻測試儀 |
ZC8-1 |
0-1-10-100Ω |
|
ZC8-2 |
0-1-10-100-1000Ω |
|
|
ZC-18 |
0-1-10-100（ 防爆型） |
|
|
ZC29B-1 |
0-1-10-100-1000Ω |
|
|
ZC29B-2 |
0-1-10-100Ω |
|
|
兆歐表 搖表 絕緣電阻表 |
JDC-1 |
2500V |
|
JDC-2 |
1000V |
|
|
JDC-3 |
5000V |
|
|
PC32-3 |
500V 1000V/2000MΩ |
|
|
PC32-5 |
1000V 2500V/20000MΩ |
|
|
PC32-6 |
2500V 5000V/20000MΩ |
|
|
PC27-1 |
500V 1000V/2000MΩ |
|
|
PC27-2H |
1000V 2500V/20000MΩ |
